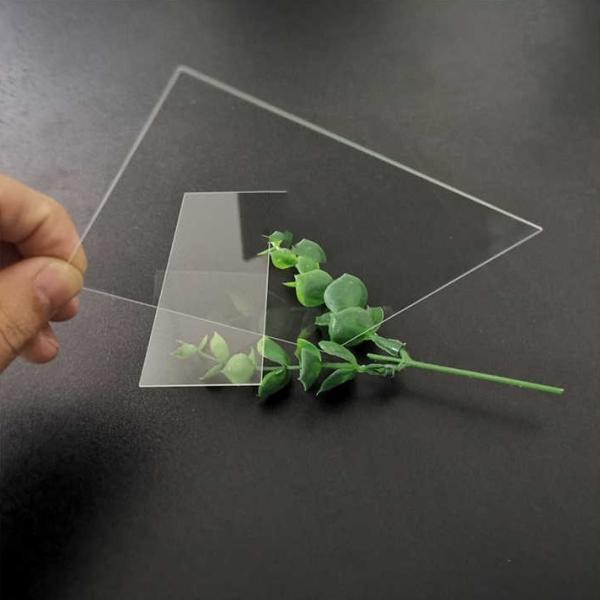

    Aluminosilicate Solar Photovoltaic Glass Integrated Transparent For Building BIPV PV

    Ask Lasest Price
    Brand Name : CHIYAN
    Model Number : CHIYAN-M2
    Certification : RoHs/REACH/Sb/Halogen free
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 2 Million ㎡ per month
    Delivery Time : 15-30 days
    • Product Details
    • Company Profile

    Aluminosilicate Solar Photovoltaic Glass Integrated Transparent For Building BIPV PV

    Aluminosilicate original glass sheet for Transparent Building Integrated Photovoltaics BIPV PV Solar Panel Glass

    Ultra Clear Medium Aluminosilicate Electronic Float Glass(CHIYAN-M2) is an eco-friendly ultra clear alumino-silicate glass with certain strength.

    Glass Type: Float glass

    BIPV Building Integrated PV (BIPV) [1] is a technology that integrates solar power generation (Photovoltaic) products into buildings. Photovoltaic Building - Volumetric (BIPV) is different from the form of BAPV (Building Attached PV). Photovoltaic building integration can be divided into two categories: one is the combination of photovoltaic array and building. The other is the integration of photovoltaic arrays and buildings. Such as photoelectric tile roof, photoelectric curtain wall and photoelectric lighting roof. In these two ways, the combination of photovoltaic arrays and buildings is a common form, especially the combination of building roofing.

    Standard shipping Size:1300*1100mm (5th Generation)

    Regular Thickness:

    2.0mm 1.80mm 1.50mm 1.30mm

    1.10mm 0.70mm 0.55mm

    0.40mm 0.33mm 0.25mm

    Features:

    High Bending Strength Resistance

    High Impact Resistance

    High Scratch Resistance

    High Flexibility

    CHIYAN-M2’s 0.25~2.0mm thickness medium alumino-silicate glass has already been used in the market to meet a wide range of customers needs.

    Note: The size can be customized according to customer's needs.

    Application:Industrial, Electronics, Medical, Decoration, Solar, Greenhouse, Curtain Wall, Balustrades & Handrails, Image formation, Lighting, Bulletproof, Display screen, Instrument

    Courtyard, Leisure Facilities, supermarket, Farmhouse, Laundry, Workshop, Exterior, Warehouse, Staircase, outdoor, Park, Wine Cellar, Office Building, Storage & Closet, Gym, Mall, Apartment, Sports Venues, Hospital, Hotel, Home Bar, Hall, Garage & Shed

    Product Composition

    Ultra Clear Medium Aluminosilicate Glass achieves better stress and strain depth than ordinary soda-lime glass by increasing the Al₂O₃ content in the glass and increasing the ion exchange capacity.

    Composition items SiO₂ Al₂O₃ Fe₂O₃ CaO MgO K₂O Na₂O
    Range of set value 69.0-72.0 4.5-8.0 0.01 6.0-8.0 3.5-5.0 0.1-1.0 13.0-14.5

    Chemical Tempering Process Parameter Setting Reference

    Technological Parameter 400°C 410°C 420°C 430°C
    CS(MPa) DOL(um) CS(MPa) DOL(um) CS(MPa) DOL(um) CS(MPa) DOL(um)
    3H ≥650 ≥7.0 ≥650 ≥8.0 ≥650 ≥9.0 ≥650 ≥10.5
    4H ≥600 ≥8.0 ≥600 ≥9.0 ≥600 ≥11.0 ≥600 ≥12.5
    5H ≥600 ≥9.0 ≥600 ≥10.0 ≥600 ≥11.5 ≥600

    ≥13.0

    Note: Tempering solution Na+<0.5%. The above test results are affected by processing conditions, the data is for reference only, not as a basis for production.

    Dimensions

    NO. Item Specification Detection Method
    1 Dimensional Tolerance 1300*1100*2mm) Tape Measure
    2 Thickness

    0.50~1.1 ±0.05m

    1.3~2.0 ±0.05m

    Micrometer
    3 Thickness Difference 0.04mm Micrometer
    4 The Diagonal Difference
    (Perpendicularity)
    0.3%

    Tape Measure

    Aluminosilicate Solar Photovoltaic Glass Integrated Transparent For Building BIPV PV

    5 Stripe Level2 Point Sources of Light
    6

    Flatness

    (Before Tempering)

    0.50~0.55 0.15%(=h/L)

    0.70~2.0 0.10%(=h/L)

    Aluminosilicate Solar Photovoltaic Glass Integrated Transparent For Building BIPV PV

    Appearance descriptions

    NO. Item Specification Detection Method
    1 Effective Mass Area All areas outside 10mm of the edge are effective mass areas. Aluminosilicate Solar Photovoltaic Glass Integrated Transparent For Building BIPV PV
    2 Appearance Defects Scratches

    w0.03mm, Allowed

    0.03mmw0.05mm,L25mm (Controlled by point defects)

    w0.05mm, Not allowed

    Aluminosilicate Solar Photovoltaic Glass Integrated Transparent For Building BIPV PV

    Fluorescent Lamp 2000-2500Lux

    Aluminosilicate Solar Photovoltaic Glass Integrated Transparent For Building BIPV PV

    Bubbles

    d0.05mm, Not counted

    0.05mmd0.2mm, Numbers5 /m²

    d0.2mm,Not allowed

    Inclusions such as stones and sticky tin

    d0.05mm, Not counted

    0.05mmd0.2mm, Numbers5 /m²

    d0.2mm,Not allowed

    3 Edge Defects Chipping

    Single chipping

    L2.0mm,W1.0mm,D1/2 of the thickness (as the right picture showed).

    The cumulative length of chipping is less than 10% of the edge length of the glass plate.

    Aluminosilicate Solar Photovoltaic Glass Integrated Transparent For Building BIPV PV
    4 Cracks and missing corners Not allowed
    5 Surface stains (glass shavings, attachments, point contamination) No stains that cannot be removed by ordinary detergents are allowed.

    d0.05mm, Not counted

    0.05mmd0.3mm, Numbers5 /m²

    d0.3mm,Not allowed

    The same method as appearance detection.

    Packing Quantity

    S/N L*W*T(mm) Packing Quantity (Pieces/Box)
    1 1300x1100x0.25 900
    2 1300x1100x0.33 1020
    3 1300x1100x0.40 900
    4 1300x1100x0.50 750
    5 1300x1100x0.55 680
    6 1300x1100x0.70 550
    7 1300x1100x0.82 490
    8 1300x1100x0.95 420
    9 1300x1100x1.0 410
    10 1300x1100x1.1 370
    11 1300x1100x1.3 310
    12 1300x1100x1.5 280
    13 1300x1100x1.6 250
    14 1300x1100x1.8 230
    15 1300x1100x2.0 200

    Packaging Diagram

    Aluminosilicate Solar Photovoltaic Glass Integrated Transparent For Building BIPV PV

    Storage
    Storage conditions: Temperature ≤30℃, humidity ≤65% (no condensation), shelf life is 6 months from the date of delivery.
