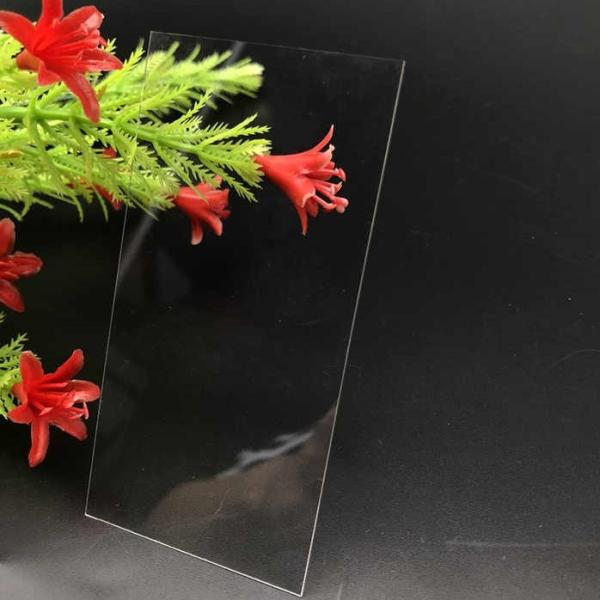

    Aluminosilicate Tempered Glass For Medical Electronic Display Cover Lens

    Ask Lasest Price
    Brand Name : CHIYAN
    Model Number : CHIYAN-M2
    Certification : RoHs/REACH/Sb/Halogen free
    Price : Negotiable
    Payment Terms : T/T,Western Union
    Supply Ability : 2 Million ㎡ per month
    Delivery Time : 15-30 days
    • Product Details
    • Company Profile

    Aluminosilicate Tempered Glass For Medical Electronic Display Cover Lens

    Aluminosilicate glass sheet for Medical Electronic Display Tempered Glass Cover Lens

    Ultra Clear Medium Aluminosilicate Electronic Float Glass(CHIYAN-M2) is an eco-friendly ultra clear alumino-silicate glass with certain strength.

    Glass Type: Float glass

    Clear float glass is made of molten glass which flows through tweel to tin bath and then to lehr. While floating through the molten tin, the glass under the works of gravity and surface tension becomes smooth and flat at both sides.The clear float glass has higher light transmittance than ordianry glass.It's often used as tv protection glass,led monitor glass,touch screen glass etc.

    Application:

    LCD display, Touch screen glass, PDP, Led TV, Note book PC, outdoor display screen, medical instrument, camera, display screen and so on. Tv glass,Lcd glass,moitor glass,

    Standard shipping Size:1300*1100mm (5th Generation)

    Regular Thickness:

    2.0mm 1.80mm 1.50mm 1.30mm

    1.10mm 0.70mm 0.55mm

    0.40mm 0.33mm 0.25mm

    Features:

    High Bending Strength Resistance

    High Impact Resistance

    High Scratch Resistance

    High Flexibility

    CHIYAN-M2’s 0.25~2.0mm thickness medium alumino-silicate glass has already been used in the market to meet a wide range of customers needs.

    Note: The size can be customized according to customer's needs.

    Product Composition

    Ultra Clear Medium Aluminosilicate Glass achieves better stress and strain depth than ordinary soda-lime glass by increasing the Al₂O₃ content in the glass and increasing the ion exchange capacity.

    Composition itemsSiO₂Al₂O₃Fe₂O₃CaOMgOK₂ONa₂O
    Range of set value69.0-72.04.5-8.00.016.0-8.03.5-5.00.1-1.013.0-14.5

    Chemical Tempering Process Parameter Setting Reference

    Technological Parameter400°C410°C420°C430°C
    CS(MPa)DOL(um)CS(MPa)DOL(um)CS(MPa)DOL(um)CS(MPa)DOL(um)
    3H≥650≥7.0≥650≥8.0≥650≥9.0≥650≥10.5
    4H≥600≥8.0≥600≥9.0≥600≥11.0≥600≥12.5
    5H≥600≥9.0≥600≥10.0≥600≥11.5≥600

    ≥13.0

    Note: Tempering solution Na+<0.5%. The above test results are affected by processing conditions, the data is for reference only, not as a basis for production.

    Dimensions

    NO.ItemSpecificationDetection Method
    1Dimensional Tolerance1300*1100*(&plusmn;2mm)Tape Measure
    2Thickness

    0.50~1.1 &plusmn;0.05m

    1.3~2.0 &plusmn;0.05m

    Micrometer
    3Thickness Difference0.04mmMicrometer
    4The Diagonal Difference
    (Perpendicularity)
    0.3%

    Tape Measure

    Aluminosilicate Tempered Glass For Medical Electronic Display Cover Lens

    5StripeLevel2Point Sources of Light
    6

    Flatness

    (Before Tempering)

    0.50~0.55 0.15%(=h/L)

    0.70~2.0 0.10%(=h/L)

    Aluminosilicate Tempered Glass For Medical Electronic Display Cover Lens

    Appearance descriptions

    NO.ItemSpecificationDetection Method
    1Effective Mass AreaAll areas outside 10mm of the edge are effective mass areas.Aluminosilicate Tempered Glass For Medical Electronic Display Cover Lens
    2Appearance DefectsScratches

    w0.03mm, Allowed

    0.03mmw0.05mm,L25mm (Controlled by point defects)

    w0.05mm, Not allowed

    Aluminosilicate Tempered Glass For Medical Electronic Display Cover Lens

    Fluorescent Lamp 2000-2500Lux

    Aluminosilicate Tempered Glass For Medical Electronic Display Cover Lens

    Bubbles

    d0.05mm, Not counted

    0.05mmd0.2mm, Numbers5 /m²

    d0.2mm,Not allowed

    Inclusions such as stones and sticky tin

    d0.05mm, Not counted

    0.05mmd0.2mm, Numbers5 /m²

    d0.2mm,Not allowed

    3Edge DefectsChipping

    Single chipping

    L2.0mm,W1.0mm,D1/2 of the thickness (as the right picture showed).

    The cumulative length of chipping is less than 10% of the edge length of the glass plate.

    Aluminosilicate Tempered Glass For Medical Electronic Display Cover Lens
    4Cracks and missing cornersNot allowed
    5Surface stains (glass shavings, attachments, point contamination)No stains that cannot be removed by ordinary detergents are allowed.

    d0.05mm, Not counted

    0.05mmd0.3mm, Numbers5 /m²

    d0.3mm,Not allowed

    The same method as appearance detection.

    Packing Quantity

    S/NL*W*T(mm)Packing Quantity (Pieces/Box)
    11300x1100x0.25900
    21300x1100x0.331020
    31300x1100x0.40900
    41300x1100x0.50750
    51300x1100x0.55680
    61300x1100x0.70550
    71300x1100x0.82490
    81300x1100x0.95420
    91300x1100x1.0410
    101300x1100x1.1370
    111300x1100x1.3310
    121300x1100x1.5280
    131300x1100x1.6250
    141300x1100x1.8230
    151300x1100x2.0200

    Packaging Diagram

    Aluminosilicate Tempered Glass For Medical Electronic Display Cover Lens

    Storage
    Storage conditions: Temperature ≤30℃, humidity ≤65% (no condensation), shelf life is 6 months from the date of delivery.
